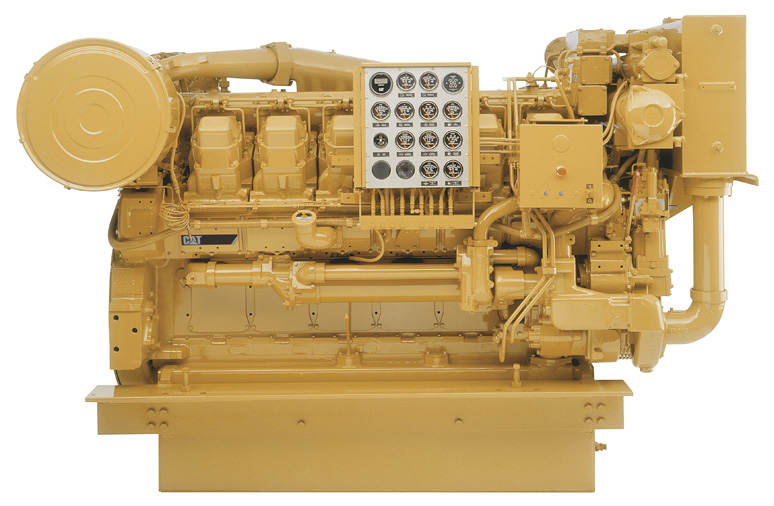

CAT 3612 DIESEL ENGINE

CAT 3612 DIESEL ENGINE FOR MARINE AND LOCOMOTIVE APPLICATION

Both types of CAT3612 and CAT3612 diesel engines are newly manufactured on basis of technical agreement introduced from Caterpillar Corporation.

The CAT3600 series of diesel engines adopts advanced electronic injection technology, computer remote monitoring technology and running data automatic measurement & record technology for each part of diesel engine.

It can automatically diagnose and report the operation,and simultaneously can set the main technical data in advance,so that can keep the diesel engine run at the normal condition and fulfill the operational protection for the diesel engine.

It has such characteristic of economical efficiency,reliable operation,low emission,low fuel consumption and long life span.

Engine Type	CAT3612 Series
MODEL	4stoke,water cooler,supercharge intermediate
CyLINDER Arrangement	Straight Arrangement
Cylinder number	12
Cylinder Bore/Stoke	280/300
Rated Rotation/r/min	1000
Min.Idle Rotation r/min	350
Engine Power KW/hp	3700/5030
Rotary Direction	counterclockwise is selectable(CCW)
External Dimensions (Length× Width× Height)	4861×1741×3550
Net Weight kg	24100

CAT nozzle and plunger list

Package	Items	Type.	Stamping No.
CAT	PencilNozzle	22808	22808
CAT	PencilNozzle	22365	22365
CAT	PencilNozzle	F237	F237
CAT	PencilNozzle	RN/005	RN/005
CAT	PencilNozzle	1W5829	1W5829
CAT	PencilNozzle	7N0449	7N0449
CAT	PencilNozzle	22762	22762
CAT	PencilNozzle	33408	33408
CAT	boschpump.com	9N2366	9N2366
CAT	PencilNozzle	8N7005	8N7005
CAT	PencilNozzle	27353	27353
CAT	PencilNozzle	20494	20494
CAT	PencilNozzle	28481	28481
CAT	PencilNozzle	28485	28485
CAT	PencilNozzle	29279	29279
CAT	PencilNozzle	32262	32262
CAT	PencilNozzle	4W7017	4W7017
CAT	PencilNozzle	4W7018	4W7018
CAT	PencilNozzle	4W7022	4W7022
CAT	PencilNozzle	7N0449	7N0449
CAT	PencilNozzle	7W7038	7W7038
CAT	Plunger	7W5929	7W5929
CAT	PencilNozzle	4W7016	4W7016
CAT	PencilNozzle	4W7015	4W7015
CAT	PencilNozzle	170-5183	170-5183
CAT	Plunger	6N7527	6N7527
CAT	Element	1W6539	1W6539
CAT	Element	1W6541	1W6541
CAT	Element	7W0182	7W0182
CAT	Element	6N7527	6N7527
CAT	Element	9H5797	9H5797
CAT	Element	7W5929	7W5929
CAT	Element	1P6400	1P6400
CAT	ring	6N8441	6N8441
CAT	Idler gear pump	4N0406	4N0406
CAT	D.gear	4N0429	4N0429
CAT	gov bearing	4N0432	4N0432
CAT	Element	7W5929	7W5929
CAT	bear shaft	6N8441	6N8441
CAT	bearing	8N2518	8N2518
CAT	ring nozzle	9L 9098	9L 9098
CAT	Element	8N3539	8N3539
CAT	gasket kit	6V5920	6V5920
CAT	Feed Pump	1W1700	1W1700
